Description
Feature

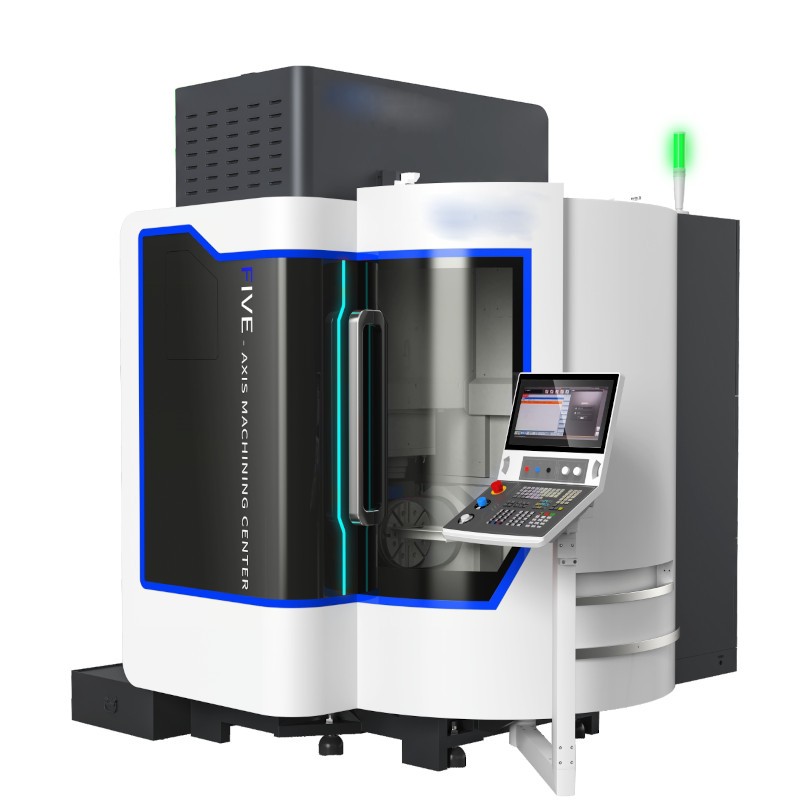

The main structure adapt cast gantry type structure with short distance from spindle to beam, which made the structure reasonable and reliable. The machine can provide perfect rigidity, accuracy and stability.
The high precision DD direct drive rotary table under Germany technology with high rigidity body structure is driven by torque motor matches with high resolution circular grating encoder and deigned with reasonable cooling channel, all these characters ensure the transmission accuracy and stability of the rotary table.
The feed motor with direct drive structure mated with screws and nut liquid coolant as a standard configuration ensures the machines a stable accuracy.
All series machines with high accuracy motor spindle to achieve best processing effect.
Technical Parameters
|
Configuration |
Unit |
HCNT-F200U |
HCNT-F400U |
|
X/Y/Z axis travel |
mm |
500/280/300 |
700/450/400 |
|
B axis Rotation range |
° |
+30~ -120 |
+30~ -120 |
|
C axis Rotation range |
° |
360 |
360 |
|
Dist. from spindle nose to worktable surface |
mm |
100-400 |
100-500 |
|
Worktable size |
mm |
Φ260 |
Φ420 |
|
Max. loading on worktable |
kg |
30 |
150 |
|
T-slot(Qty-width*distance) |
mm |
8-14*45°(average distribution） |
8-14*45°(average distribution）
|
|
X/Y/Z axis rapid speed |
mm/min |
24000 |
24000 |
|
B/C axis rotational speed |
r/min |
50/50 |
50/50 |
|
X/Y/Z axis positioning accuracy |
mm |
0.006/0.006/0.006（VDI 3441） |
0.006/0.006/0.006（VDI 3441） |
|
X/Y/Z axis repeat positioning accuracy |
mm |
0.004/0.004/0.004（VDI 3441） |
0.004/0.004/0.004（VDI 3441） |
|
B/C axis positioning accuracy |
sec |
8/8（VDI 3441） |
5/5（VDI 3441） |
|
B/C axis repeat positioning accuracy |
sec |
5/5（VDI 3441） |
3/3（VDI 3441） |
|
pindle motor |
kW |
11/19 |
16/19.4 |
|
Spindle motor torque(S1/S6) |
N.m |
5/8.7 |
28/34 |
|
Spindle speed |
r/min |
0~30000 |
0~24000 |
|
Tool specification |
/ |
HSK E40 |
HSK E50 |
|
Tool magazine structure |
/ |
Umbrella shaped |
Umbrella shaped |
|
Tool magazine capacity |
Position |
30 |
24 |
|
Max cutting tool weight |
kg |
1.2 |
2 |
|
Max cutting tool length |
mm |
150 |
200 |
|
Max diameter(full tool/adjacent empty tool) |
mm |
Φ40/Φ60 |
Φ50/Φ100 |
|
Control system |
/ |
Siemens SINUMERIK ONE |
Siemens SINUMERIK ONE |
|
Dimension(L*W*H) |
mm |
3200*4000*2700 |
3600*4200*3200 |

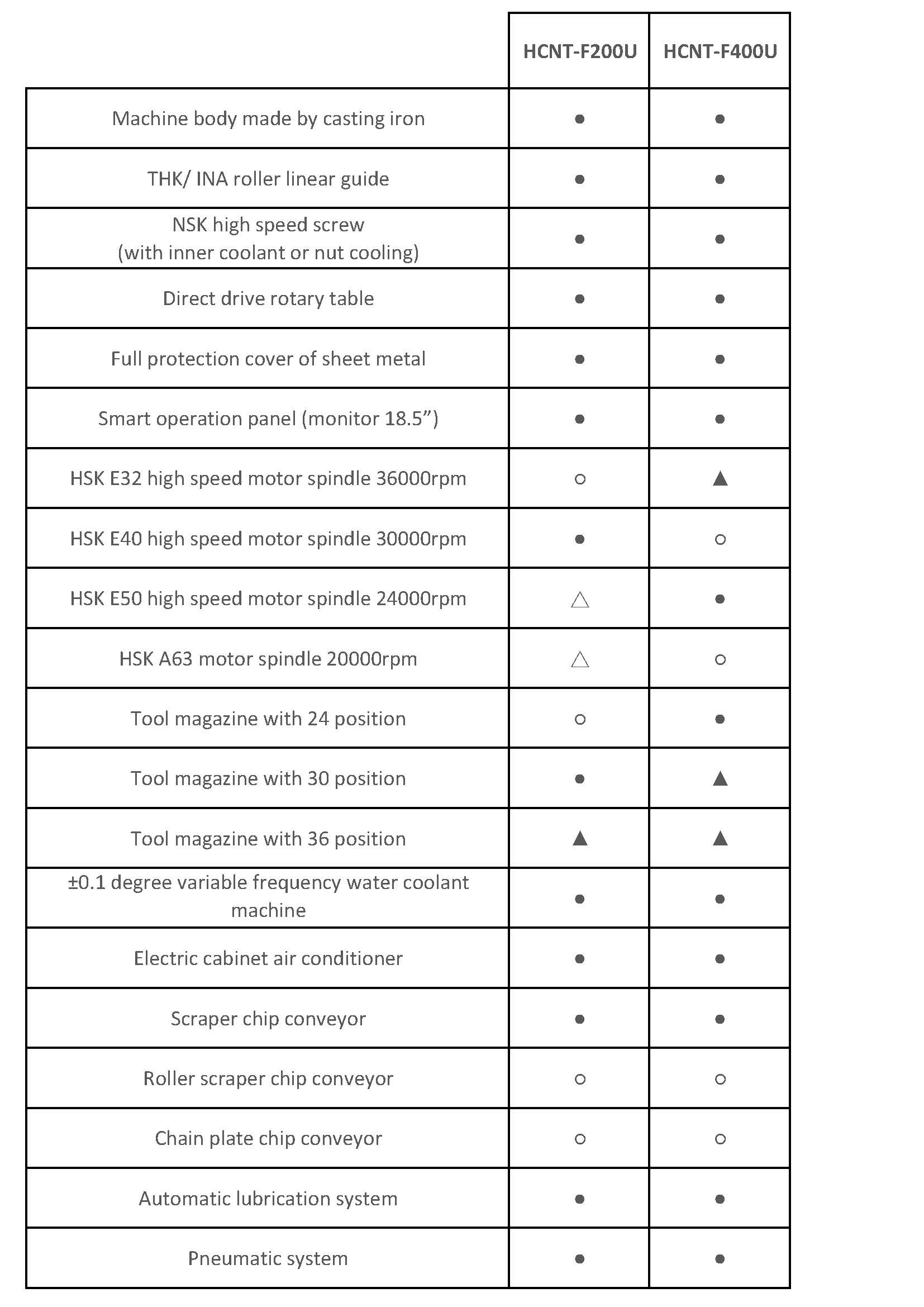

Technical configuration
|
|
HCNT-F200U |
HCNT-F400U |
Machine body made by casting iron |
● |
● |
THK/INA roller linear guide |
● |
● |
NSK high speed screw(with inner coolant or nut cooling) |
● |
● |
Direct drive rotary table |
● |
● |
Full protection cover of sheet metal |
● |
● |
Smart operation panel (monitor 18.5”) |
● |
● |
HSK E32 high speed motor spindle 36000rpm |
○ |
▲ |
HSK E40 high speed motor spindle 30000rpm |
● |
○ |
HSK E50 high speed motor spindle 24000rpm |
△ |
● |
HSK A63 motor spindle 20000rpm |
△ |
○ |
Tool magazine with 24 position |
○ |
● |
Tool magazine with 30 position |
● |
▲ |
Tool magazine with 36 position |
▲ |
▲ |
±0.1 degree variable frequency water coolant machine（spindle, rotary table, screw） |
● |
● |
Electric cabinet air conditioner |
● |
● |
Scraper chip conveyor |
● |
● |
Roller scraper chip conveyor |
○ |
○ |
Chain plate chip conveyor |
○ |
○ |
Automatic lubrication system |
● |
● |
Pneumatic system |
● |
● |

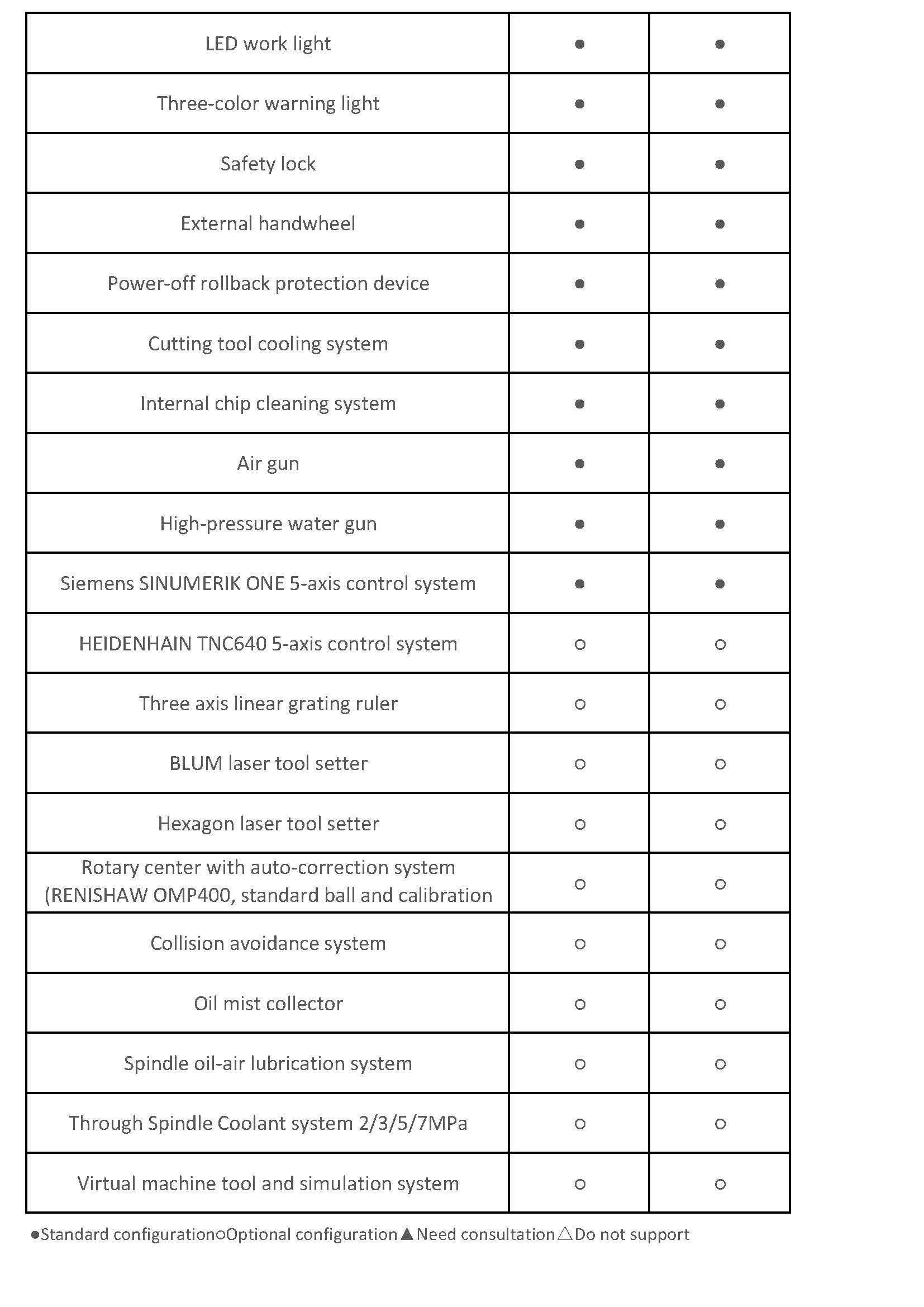

LED work light |
● |
● |
Three-color warning light |
● |
● |
Safety lock |
● |
● |
External handwheel |
● |
● |
Power-off rollback protection device |
● |
● |
Cutting tool cooling system |
● |
● |
Internal chip cleaning system |
● |
● |
Air gun |
● |
● |
High-pressure water gun |
● |
● |
Siemens SINUMERIK ONE 5-AXIS CONTROL SYSTEM |
● |
● |
HEIDENHAIN TNC640 5-AXIS CONTROL SYSTEM |
○ |
○ |
Three axis linear grating ruler |
○ |
○ |
BLUM laser tool setter |
○ |
○ |
Hexagon laser tool setter |
○ |
○ |
Rotary center with auto-correction system(RENISHAW OMP400, standard ball and calibration system) |
○ |
○ |
Collision avoidance system |
○ |
○ |
Oil mist collector |
○ |
○ |
Spindle oil-air lubrication system |
○ |
○ |
Through Spindle Coolant system 2/3/5/7MPa |
○ |
○ |
Virtual machine tool and simulation system |
○ |
○ |
●Standard configuration○Optional configuration▲Need consultation△Do not support
